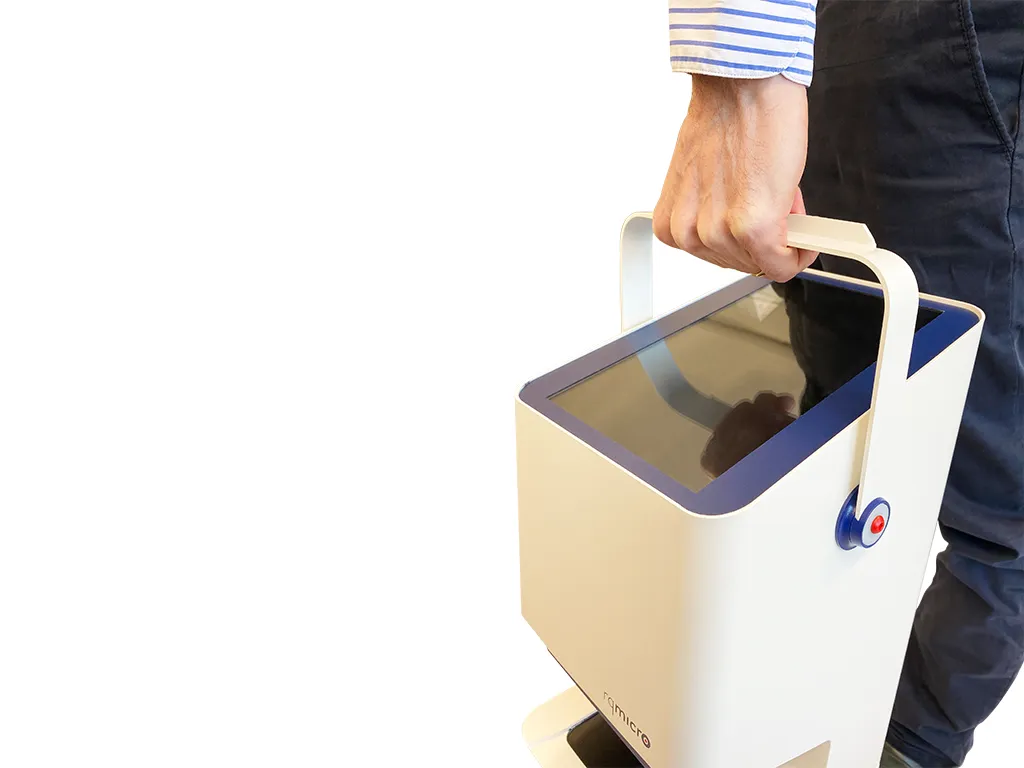

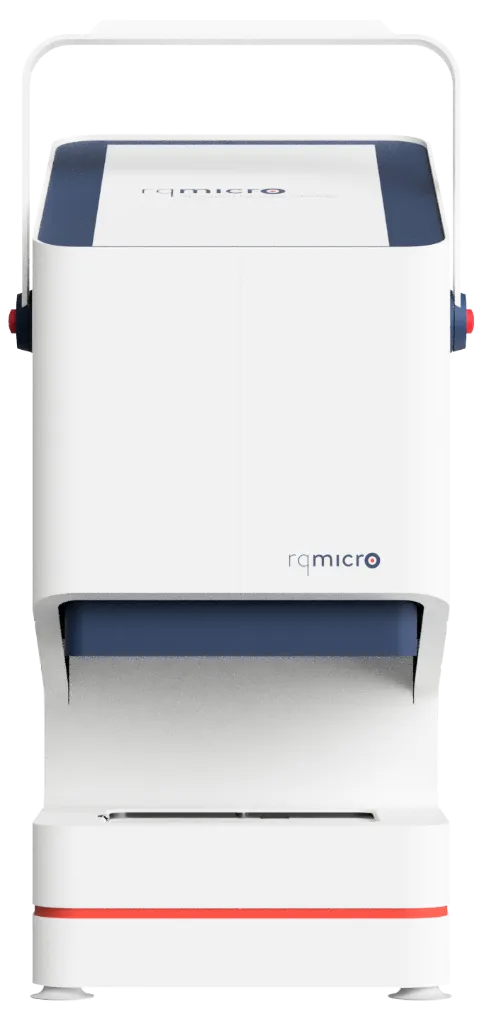

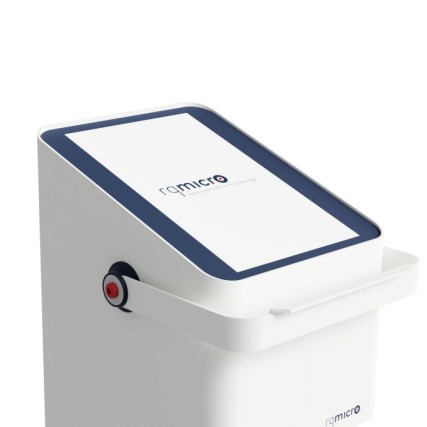

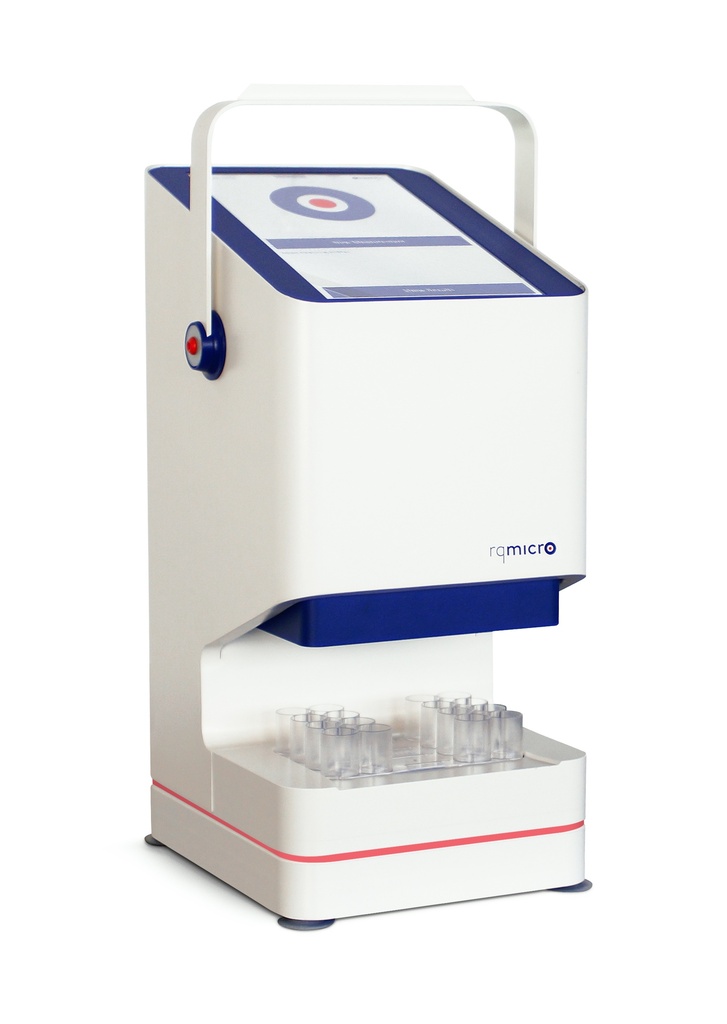

The rqmicro.COUNT is a cartridge-based flow cytometer for automated microbiological analysis of liquid samples. It enables fluorescence-based single-cell analysis for the quantification of total bacterial cells, intact bacterial cells, and the detection of specific microorganisms. The instrument is designed for use with rqmicro reagent kits and performs automated sample processing, measurement, and data analysis through dedicated assay protocols. For organism-specific assays, such as Legionella detection, the system can run an automated immunomagnetic separation (IMS) as part of the assay workflow when required.
See all applications here.
Key Features
- Cartridge-based flow cytometer for automated microbiological analysis
- Fluorescence-based single-cell detection and enumeration
- Compatible with rqmicro reagent kits for total cell counts and organism-specific assays
- Integrated immunomagnetic separation (IMS) capability for specific assays, including Legionella detection

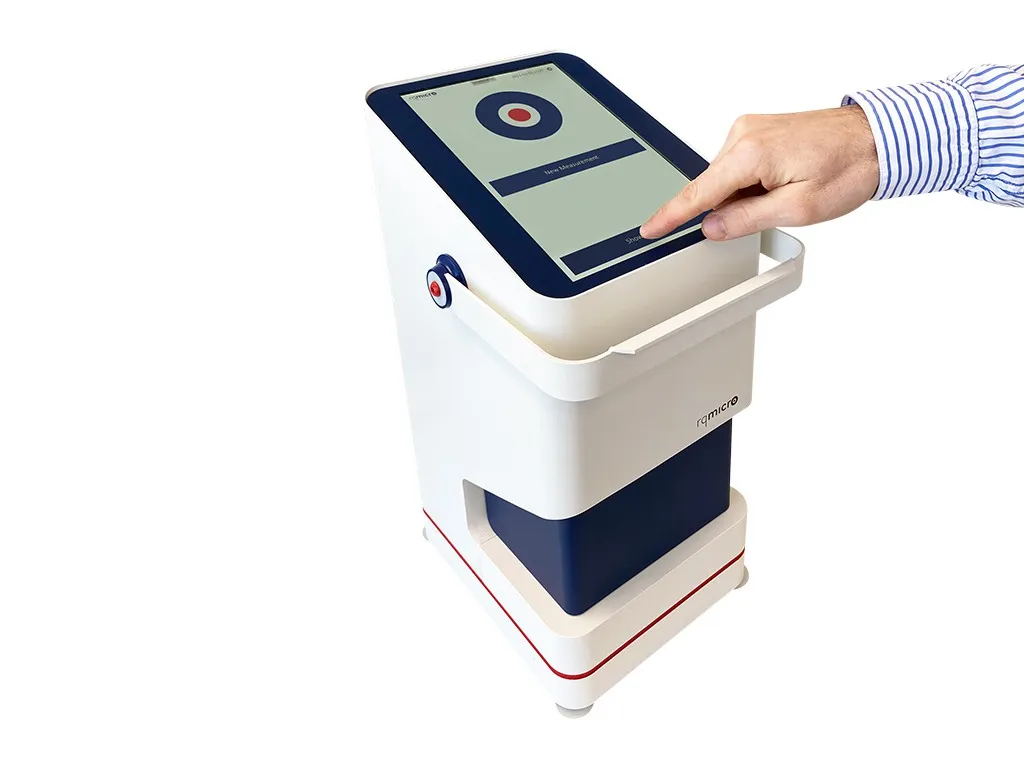

- Touchscreen interface with integrated analysis software
- Cloud-based data management and result storage
Compatible Test Kits
-
rqmicro Total Cell Count Kit
-
rqmicro Intact Cell Count Kit
-
rqmicro Legionella Count Kits
-
rqmicro E. coli Count Kit
-
rqmicro E. coli Detect Kit
Technical Specifications
| Parameter | Specification |
|---|
| Measurement technology | Fluorescence flow cytometry |
| Cell separation | Integrated immunomagnetic separation (IMS) |
| Excitation source | 488 nm laser |
| Detection channels | 2 fluorescence channels |
| Analysis rate | Up to 10,000 events/s |
| Sample volume | 200 µL–1 mL |
| Flow rate | 60 µL/min |
| User interface | 10-inch capacitive touchscreen |
| Connectivity | USB, Ethernet, optional WLAN/mobile via USB dongle |
| Languages | English, German, Chinese |
| Dimensions (W × D × H) | 225 × 235 × 465 mm |
| Weight | 12.9 kg |
| Power supply | 100–240 V AC, 50/60 Hz |
| Power consumption | 60 W |
| Operating temperature | 15–27 °C |
