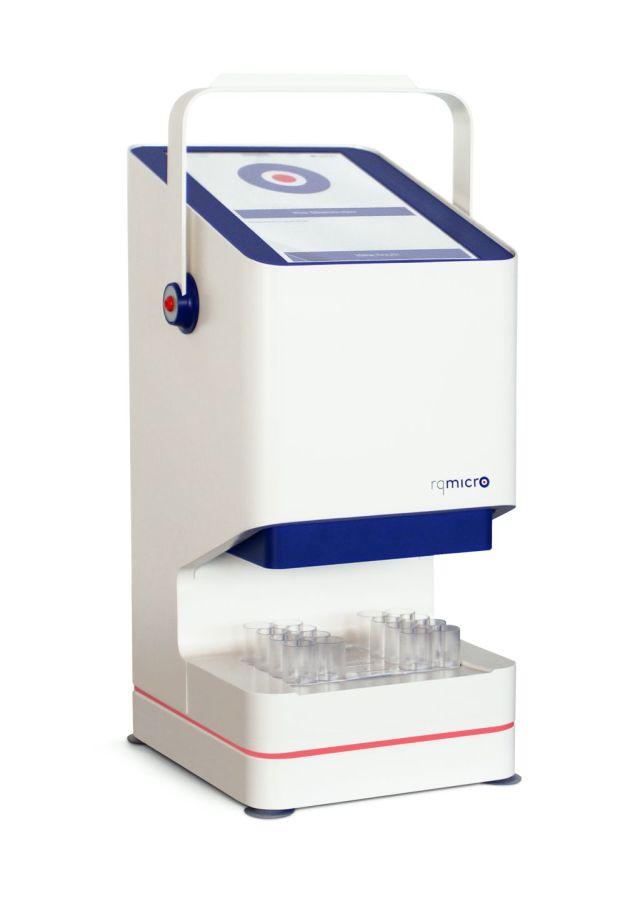

rqmicro.COUNT

Platform for convenient, fast and accurate bacteria detection in water

Applications

Cooling Tower Monitoring
More Details
Wastewater Reuse
More Details
E. coli Indicator Testing
More Details
Legionella Risk Assessment
More Details
Water Safety Concept
More Details
Outbreak Management
More Details
Rapid Microbiology Testing
More Details


Automated workflow

Automated workflow for unbiased results in labs and on-site

rqmicro.COUNT provides a complete solution based on single-use cartridges. The automated workflow includes a fast immunomagnetic separation and flow cytometric quantification of target cells from various water types.

The cartridge system enables a highly efficient and controlled process, eliminates sample-to-sample contamination, and does not require lengthy start-up or maintenance cycles.

Watch the video

Quantitative analysis of specific pathogens and total bacteria

Single-cell analysis on rqmicro.COUNT enables users to quantify both specific bacteria, including viable but non-culturable cells (VBNC), and total bacterial count in various water types.

Accurate and reliable results support critical water management decisions.

Download the brochure:
rqmicro.COUNT_ENG
rqmicro.COUNT_DE
rqmicro.COUNT_CN

Quantitative analysis of specific pathogens and total bacteria
rqmicro.COUNT cloud

rqmicro.COUNT Cloud

Results generated by rqmicro.COUNT are immediately available online on the online rqmicro.COUNT cloud platform.


Cloud platform features include:

  • Monitoring critical control points
  • Receipt of alerts
  • Creation of reports
  • Sharing results

The cloud platform enables effective water microbiology risk management with different stakeholders.

Online platform for reports and data analysis

Book Online Demo

Want to know more about the rapid pathogen detection with rqmicro.COUNT? Contact us or book an online demo presentation to see rqmicro.COUNT in action.

Protected by reCAPTCHA, Privacy Policy & Terms of Service apply.

rqmicro.COUNT Specifications

SAMPLE PROCESSING

Format
Single-use microfluidic cartridge, up to 8 samples per cartridge

Processing Modes
Magnetic separation, counting or magnetic separation & counting

Throughput
Magnetic separation – 8 samples per hour
Counting – 12 samples per hour
Magnetic separation & counting – 6 samples per hour

DETECTION

Method
Flow cytometry using fluorescence signal

Optical Alignment
Fully automated, self-correcting

Quantitative Working Range
1 to 5'000'000 particles/ml

USER INTERACTION & CONNECTIVITY

User Interface
10-inch capacitive LCD touch screen

Connectivity
3 x USB, 1 x Ethernet RJ-45, connectors for WLAN, GSM 3G/4G

Software Upgrades
On-site via USB flash drive

OPERATING CONDITIONS & DIMENSIONS

Power Consumption
60 W, 12 V DC, 7.5 A , AC benchtop adapter, 100 - 240 V, 50/60 Hz

Operating Environment
Temperature: 15 °C – 27 °C; Humidity (relative): 0% to 80%

Physical Dimensions
B x W x H (cm): 22.5 x 23.5 x 46.5
Weight: 12.9 kg

Safety Certification
CE/FCC
